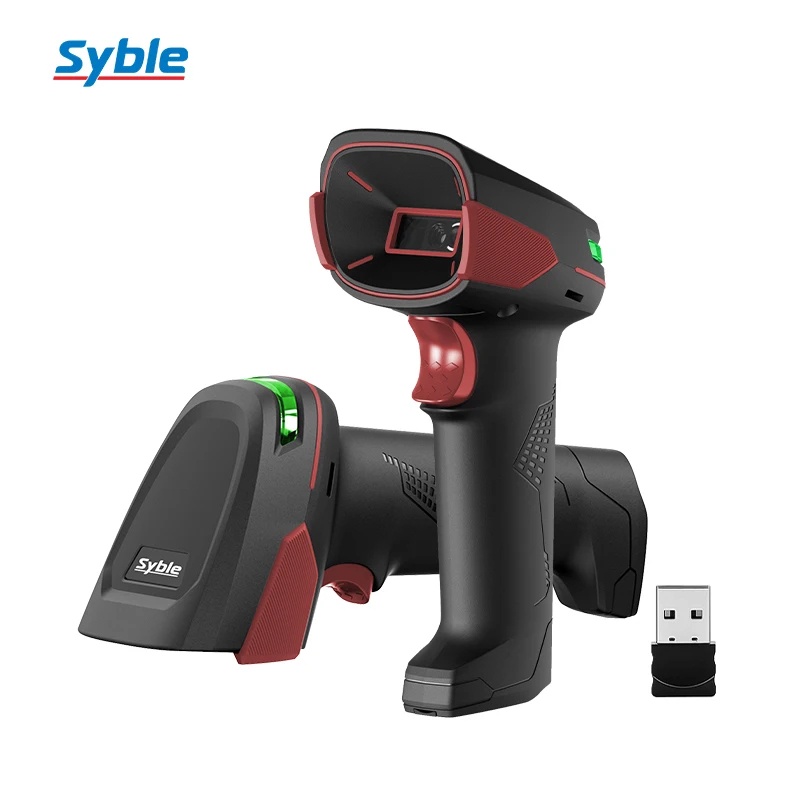

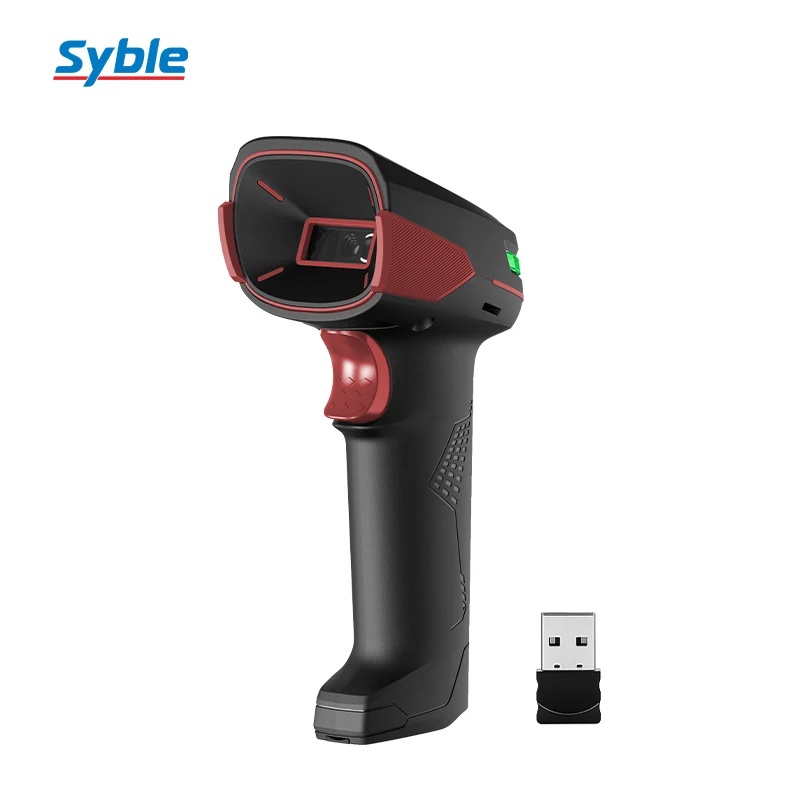

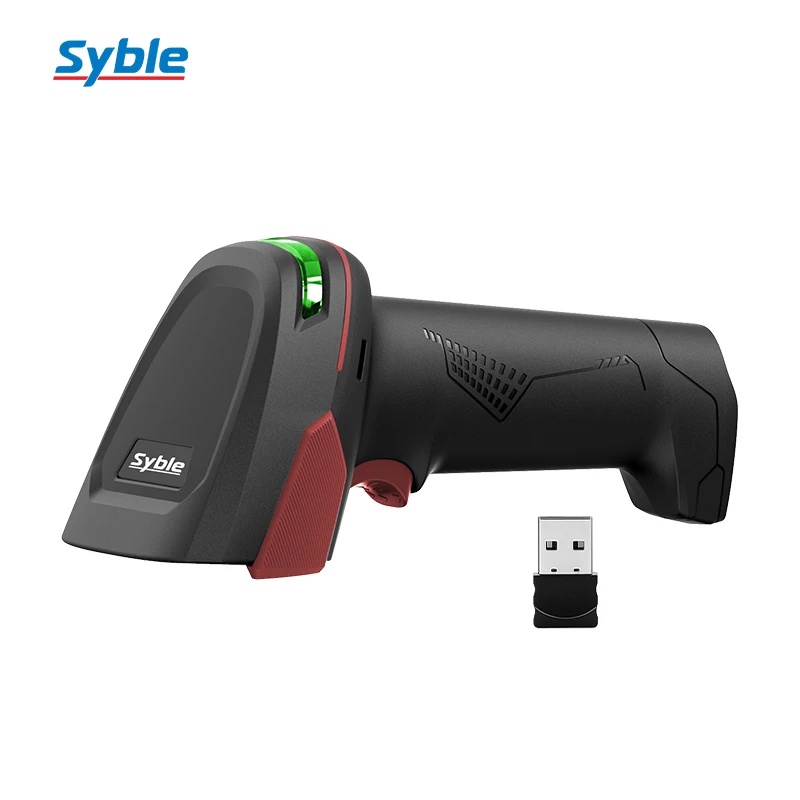

Syble XB-D35RB 1D/2D Wireless Barcode Reader

The Syble XB-D35RB is an advanced wireless barcode reader by Syble, featuring CMOS imaging technology and 2.4G/Bluetooth connectivity. It accurately scans both 1D and 2D barcodes, powered by a 2200mA battery for extended operation, making it ideal for retail, warehousing, and industrial environments. Read more

Key Specifications

• Item NO.: XB-D35RB
• Model Number: XB-D35RB
• Light Source Type: White lighting, green aiming light
• Scanning Principle: Imaging CMOS
• Resolution: 640×480
• Trigger Mode: Manual scan / continuous scan / auto-sensing scan
• Scan Angle: Rotation angle 360∘, elevation angle ±65∘, deflection angle ±65∘
• Scanning Depth of Field:
• EAN 13: 55mm−300mm (13mil)
• Code39: 60mm−180mm (5mil)
• QR Code: 75mm−190mm (15mil)
• Code 128: 50mm−160mm (5mil)
• Bit Error Rate: 1/5 million
• Contrast: ≥20%
• Communication Interface:
• Receiver: USB-HID, USB-COM
• Bluetooth: HID, BLE mode
• Wireless Communication Method:
• Pairing dedicated receiver: 2.4G communication
• Pairing mobile Bluetooth device: Bluetooth communication
• Wireless Communication Distance: Open distance: 100 meters
• Receiver: Dedicated receiver, Android/IOS mobile Bluetooth device
• Voltage: DC5V±5%
• Working Current: 200mA
• Standby Current: 0mA (battery power is cut off in standby mode)
• Lithium Battery: 2200mA lithium battery
• Continuous Working Time: Scanning gun scans continuously for 1S, working time is 7 hours / scanning number is 25000 times
• Charging Time: 4 hours
• Charging Method: Type-C interface, plug in and charge directly
• Scanner Size: 173×79×67MM
• Material: ABS+PC
• Charging Cable Standard: 0.8m
• Working Temperature: −20∘C∼+50∘C
• Storage Temperature: −40∘C∼+70∘C
• Working Humidity: 5%∼95% (no condensation)
• Ambient Light: 0 100000 LUX
• Drop Resistance: Can withstand 1.5m free fall
